How a Lock Actually Works, and Six Other Mechanisms Worth Knowing

Most mechanisms have exactly one clever idea in them. Everything else is engineering around that idea to make it manufacturable and durable.

Here are seven, with the idea identified in each case.

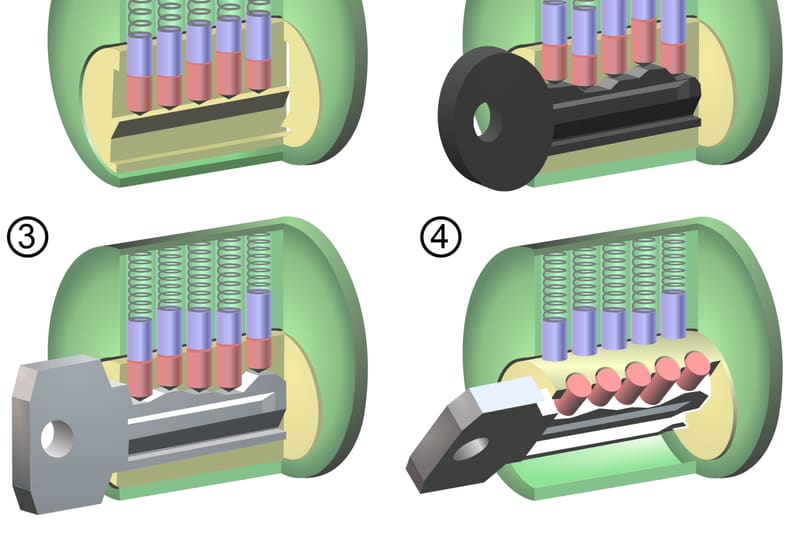

1. The pin tumbler lock

A cylinder sits inside a housing. The cylinder can only rotate if nothing crosses the boundary between the two.

Crossing that boundary is a set of spring-loaded pin stacks, each in two parts. With no key in the lock, the springs push the pins down so that each stack straddles the boundary, jamming the cylinder in place.

The clever idea: each pin stack is cut into two pieces of different lengths, and a key with the correct set of heights lifts every stack by exactly the right amount so that all the splits line up precisely at the boundary at the same moment.

That is the whole invention. The cylinder is then free to rotate, and it turns the bolt. Everything else — the shape of the keyway, the number of pins, security pins with odd profiles — is refinement.

2. The zip

Two rows of interlocking teeth and a slider.

The clever idea: the slider is not a simple guide. It is a Y-shaped channel with a wedge in the middle. Pulling it one way forces the two rows of teeth together at an angle that makes each tooth slot into the gap between two opposing teeth and lock in place. Pulling it the other way, the wedge drives between the rows and levers them apart.

One moving part, no springs, and it does two opposite jobs depending on direction.

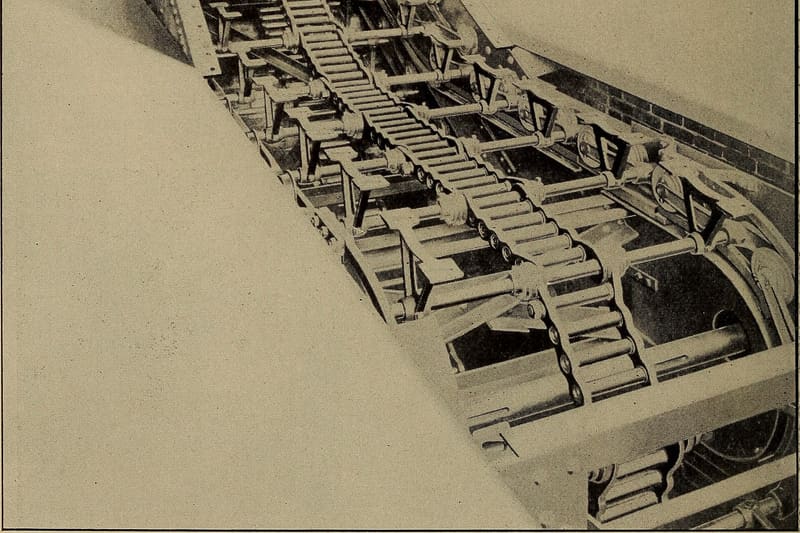

3. The escalator at the ends

Escalator steps are horizontal when you get on, rise into a staircase, and flatten again at the top.

The clever idea: each step runs on two sets of wheels at different heights, riding in two separate tracks. Where the tracks are the same distance apart vertically, the step stays level. Where they separate, the step tilts into a stair profile. The step does not change shape at all; the tracks change relative position, and the geometry does the rest.

4. The thermos flask

Two containers, one inside the other, joined only at the neck, with the air between them pumped out.

The clever idea: heat travels by conduction, convection and radiation, and the vacuum flask attacks all three at once. The vacuum removes conduction and convection, because there is essentially no material between the walls to carry heat. The silvered surfaces reflect radiant heat back where it came from. The narrow neck join is the only conductive path left, which is why it is made as thin and as long as practicable.

It does not know whether the contents are hot or cold. It simply makes heat transfer in either direction very difficult.

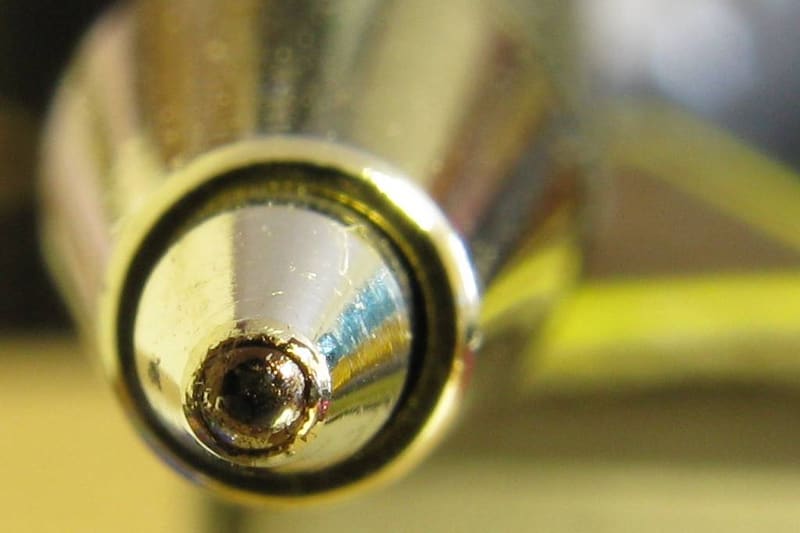

5. The ballpoint pen

A tiny ball held in a socket, with viscous ink behind it.

The clever idea: the ball is a rolling valve. It is held with just enough clearance to rotate freely but not enough for ink to escape past it when stationary. As the ball rolls across paper, it carries a film of ink out of the socket and lays it down.

Getting this to work required an ink of the right viscosity and a socket machined to extremely tight tolerance. Both took decades, which is why a device this simple is a twentieth-century invention.

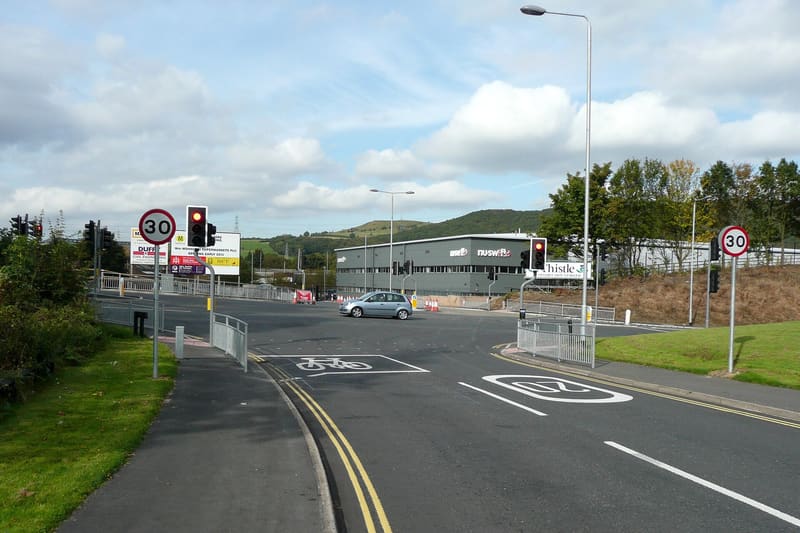

6. Traffic lights that seem to know you are there

Most modern signals are not simply on a timer.

The clever idea: an induction loop, a coil of wire embedded in the road surface, carries a current that generates a magnetic field. A large mass of metal sitting over the loop changes its inductance, and the controller detects that change. It is not detecting weight and it is not a camera; it is detecting a change in a magnetic property.

This is also why some loops struggle to detect motorcycles and bicycles, which present much less metal.

7. The humble cistern

Push the lever and a precisely measured quantity of water is released, and then it refills and stops exactly at the right level without any electronics.

The clever idea: two independent mechanisms. A siphon or flap valve dumps the contents once started and stops automatically when the water level drops below it, and a float valve closes the inlet when the float rises to a set height.

Both are purely mechanical, both are self-limiting, and the design is essentially unchanged in over a century.

The thing they have in common

Every one of these takes a problem that sounds like it needs a control system — sensing, measuring, deciding — and solves it with geometry instead.

That is the general shape of good mechanical design, and it is why these devices are reliable enough that most people have never seen one fail.
